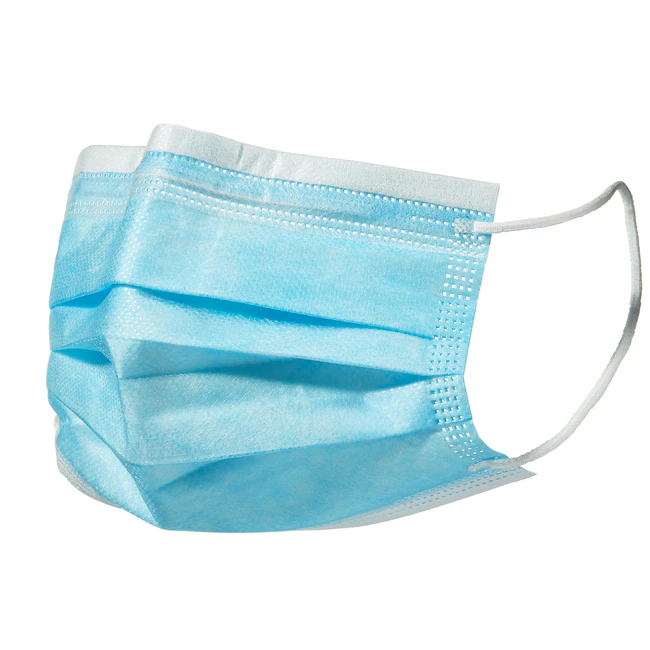

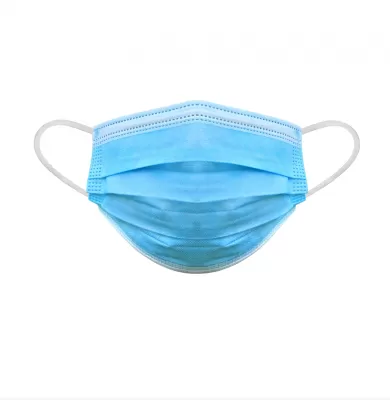

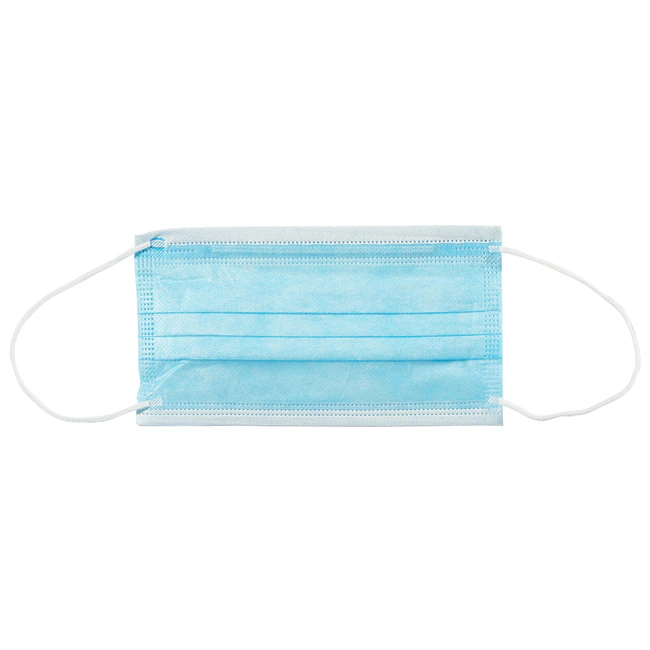

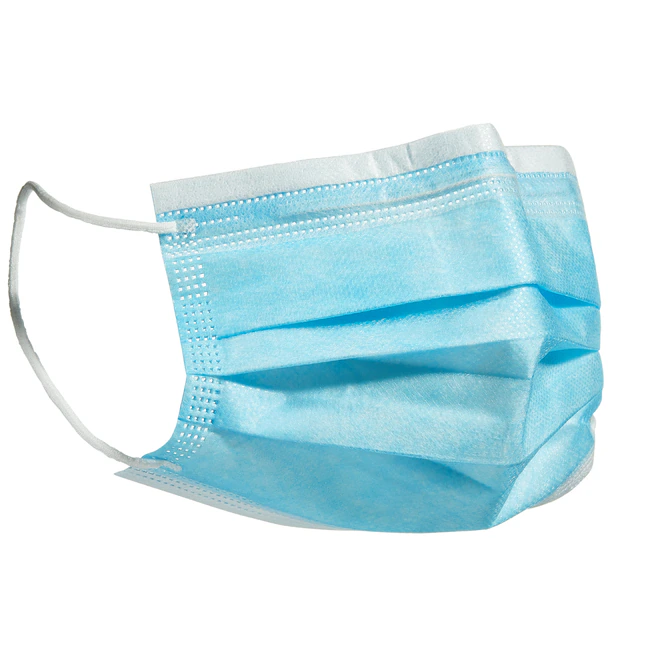

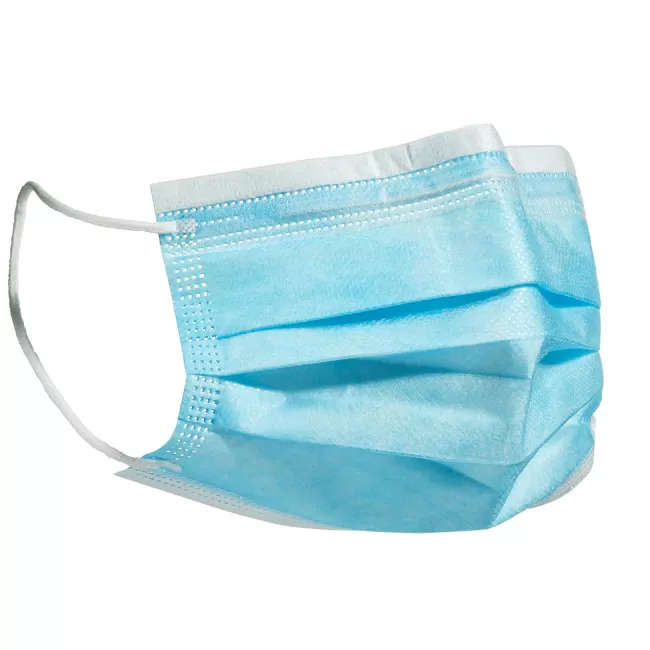

Manufactured soft SSS Nonwoven Polypropylene fabric
· BFE &PFE Meets Medical Degrade
· Comfort Fit and Breathable
· 100% Latex Free,3ply with Elastic Loop&High Quality Nose Bridge
· ASTM LEVEL1 and EN14683 Type I Standard Compliant
Product code | Description | Color |
FP2100 | 3ply Earloop Mask,25gsm/25gsm/25gsm ASTM LEVEL 1 Adult Size (17.5x9.5cm) | BLUE(FP2100) WHITE(FP2101) YELLOW(FP2102) GREEN (FP2103) |
FP2110 | 3ply Tie-on Mask,25gsm/25gsm/25gsm 2layer ASTM LEVEL 1 Adult Size (17.5x9.5cm) | BLUE(FP2110) WHITE(FP2111) YELLOW(FP2112) GREEN (FP2113) |
Face Mask LEVEL 1 &2 Physical Properties (Substrate Data)
Test Item | ASTM LEVEL 1 | ASTM LEVEL 2 | Test Method |
Physical Properties | |||
Basis Weight Out Layer | 25± 1 gsm SSPP | 25± 1 gsm SSSPP |
ASTM D3786 |

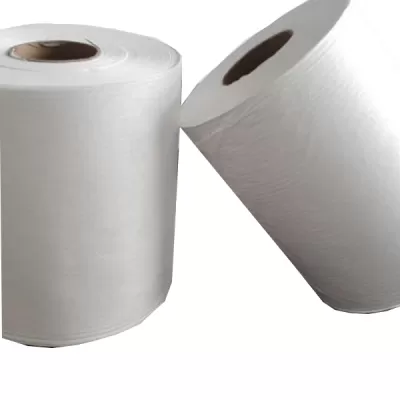

Basis Weight Middle Layer | 25± 1 gsm Meltblown | 25± 1 gsm Meltblown | |
Basis Weight Inner Layer | 25± 1 gsm SSPP | 25± 1 gsm SSSPP | |
Tensile Strength (Warp) machine | 18 lbs./in | 20 lbs./in |
ASTM D5034 |
Tensile Strength (Filling) cross | 9.5 lbs./in | 11.5 lbs./in | |
Ear-loop at break (Warp) | ≧20N 80D Round Loop | ≧20N 80D Round Loop |
ASTM D2261 |
Barrier and Comfort Properties | |||
BFE % | ≧95% | ≧98% | ASTM F2100 &2101 |
Air Exchange Pressure | 3.6cm H2O | 3.0 cm H2O | GB/T 4744-1997 |
Blood Fluid Resistant | 80mmHg | 120mmHg | ASTM F1862 |
Flame resistance | Class 1 | Class 1 | ASTM D6413 |
Differential Pressure PA/cm2 | 20.1 | 22.4 | EN14683:2019 |
Microbial Cleanliness cfu/g | 15 | 9 | EN14683:2019 |
*Note: Technical data represented in this table are typical values at the time of publication. Third party independent lab test results available upon request.
A mask that passes this test with a filtration efficiency of 95% or higher is considered a “medical grade” face mask. While the ASTM F2100 standard is primarily designed for use with medical face masks, it can also be applied to other types of personal protective equipment (PPE), such as respirators.
The standard that covers the performance requirements and test methods for materials used to construct medical facemasks used in providing DIFFRENT Conditions.
Which ASTM face mask level should you use? Level 1—For procedures producing low amounts of fluid, spray and/or aerosols. Level 2—For procedures producing light to moderate amounts of fluid, spray and/or aerosols. Level 3—For procedures producing moderate to heavy amounts of fluid, spray and/or aerosols.
